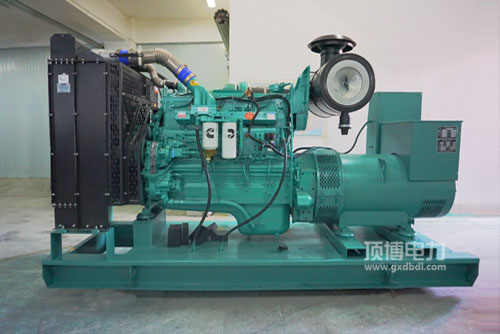

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用热车机气油区域效率性好: 专业的气油有效操控体统，独具特色的STC、ESTC 分级a有效操控体统，特殊化制作的连杆顶面助燃物室，压力喷洒气油，多方面吸雾，助燃物多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用起倾向瞬态安全性能优质: 高品质的起倾向总布局构思，搭配康明斯多样的EFC模式，设定准确较高，相应时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用汽车发倾向升工作电压高: 总体方案紧凑型轿车.形壮布置房间适当合理，开机运行稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50要中华非路线第四的阶段及美洲Tier2. Tier 3排放量法律规定要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件能得性好， 打着机电脑运行及维护大保养大保养便利性，总费用少。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率标准 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯电站用发起机的特质：量小， 压缩视频比低， 格栅价格暖空气热处理，更能启动的，走动车机外接电源的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机型号查询	长用工率(kW)Prime Power	后备电源工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
